Earthing & Lightning Protection System
A reliable earthing system with short, direct, and low resistive path ensures protecting people, equipment, structure, and environment by dissipating fault currents that are of high magnitude and impulsive rise times. Earthing systems are designed as per the requirement of electrical systems and applications, though the principle remains the same, conductors, devices, type of connections varies for different applications such as power stations, overhead transmission systems, consumer power networks.
Couplers: Earth Rod Couplers are designed for coupling two or more threaded copper bonded earth rods or to couple with a driving stud during installation.
Driving stud: Driving Studs made from high tensile steel are designed for driving threaded copper bonded rods by hand tools or power hammer.
Concrete Inspection Pit: concrete earth inspection pits are tested as per IEC 62561-5 withstanding 3500 kg load tests, Stainless Steel 304 hooks by default in all the concrete inspection pits ensure less corrosion, durability, and low maintenance.
Earth Bar: 5 Hole and 7 Hole.
Rods & Rebar Clamps: Type-A | Conductor Clamp | U Bolt Clamps | Cable Clamp 3 parallel clamp
Accessories
All earthing accessories or mechanical connection components are made from a special copper alloy that features high mechanical strength and high conductivity. For some parts considering their applications, forging process is used to increase the mechanical strength assuring extra heavy-duty performance. Fasteners used in all the fittings are only made from solid copper alloys (Special Grade Brass / Phosphor Bronze / pure copper) and are not made from commercial copper/brass plated steel.
Flexible Braids: These items are used for bonding metallic items such as metal doors, fences, handrails, etc.

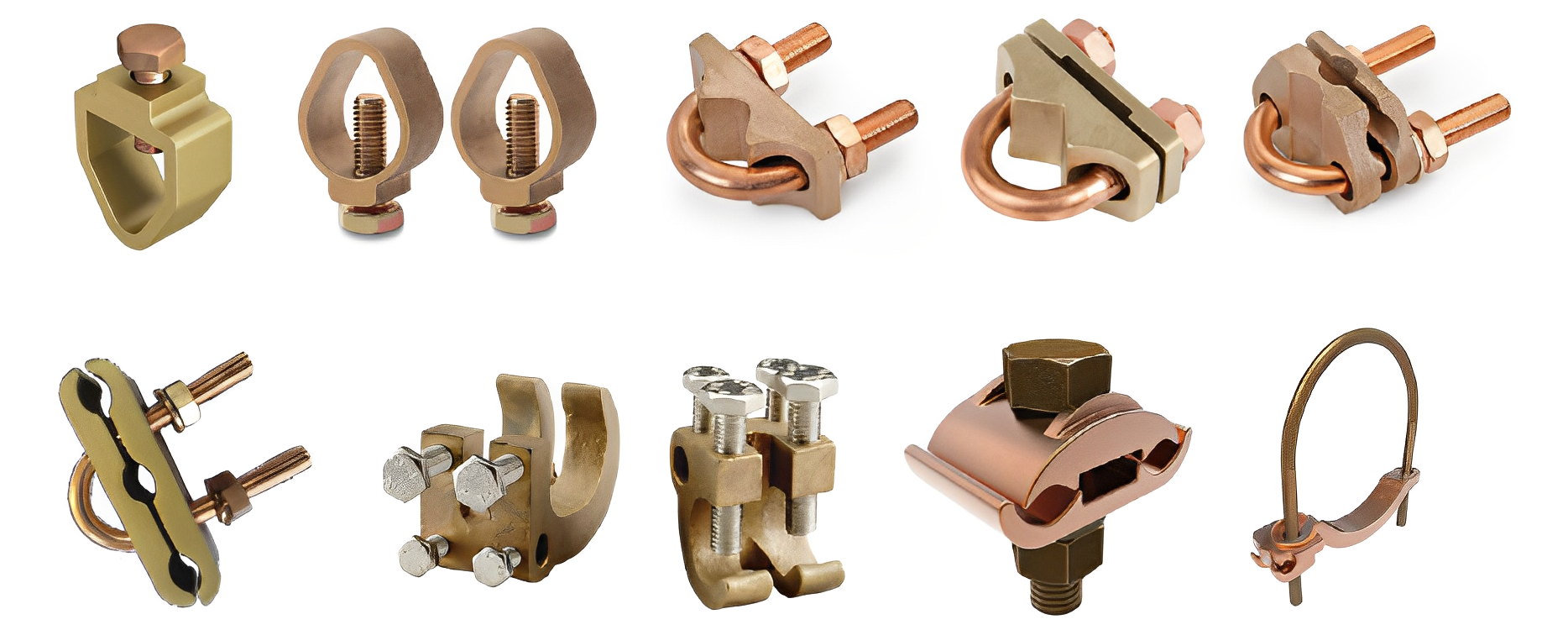

Rods and Rebar Clamps
Split Bolt Connectors
1. Rod to Tape Clamp (Type A)
2. Rod to Conductor Clamp (Type G)
3. U Bolt Rod Clamp (Type E): (Single-plated Horizontal type)
4. U Bolt Rod to Tape Clamp (Type E): (Double plated vertical type)
5. U Bolt Rod to Cable Clamp (type GUV): (Double Plated Vertical Type)
6. U Bolt Rod to 3 parallel Cable Clamp (Type V): (Double Plated Vertical Type)
7. Rod to Cable Lug Clamp (Type B)
8. Rebar Clamp
9. Tower Earth Clamp
10. Pipe Clamp
