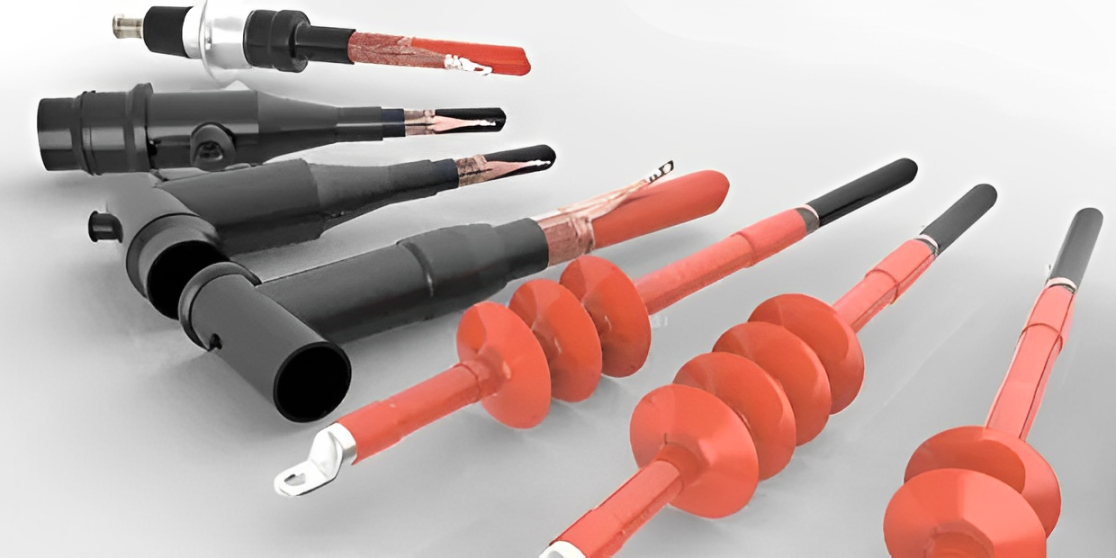

RAYCHEM TERMINATIONS

FOR POLYMERIC AND MIND PAPER INSULATED CABLES FROM 7.2 KV UP TO 36 KV

Armour Earthing

Wire armour in paper or plastic cables can be effectively terminated to earth by means of mechanical clamping rings. Heat-shrinkable tubing for corrosion protection and an insulated copper conductor for earth connection are also included. The kits can be ordered separately or with the termination by adding the mod code to the end of the part number.

Cable preparation kit

Two types of cable preparation kits are also available. The one for paper cable contains cleaning
solvent, solder and binding wire. The one for plastic cable contains abrasive paper, string, cleaning tissues and plastic gloves. These can only be ordered along with terminations by adding the mod code to the end of the part number.

Raychem Cable Glands

The Raychem cable gland is used with a wide range of cable boxes designed for compound filling where the distance from bushing to base-plate is a limiting factor.

The gland is made to match stud spacings to BS 2562. It is also available with an insulating plate for separate earthing and of aluminium for single core applications. These can be ordered separately as complete kits or along with the termination by adding the mod code at the end of the part number.

Raychem Heat shrink wrap tubing and sleeves

The high expansion ratio of Raychem heat shrink sleeves make it possible to repair most damaged cable jackets without removing the connectors. Available in a wide range of materials, colors, and sizes, these heat shrink tubing solutions are delivered in forms such as spools, 1.2m lengths and cut pieces. Clear types permit inspection of covered components and offer excellent transmittance of light.

Our expansive assortment of Raychem heat shrinkable tubing solutions help manufacturers avoid countless design requirements to meet rugged performance standards and challenges imposed by ever-changing market needs.

Raychem Boots

Insulating boots are moulded parts which are shrunk over the connection between the cable lug and bushing to insulate them. They are used in switchgear and transformers with compound filled boxes where the clearances are insufficient for operation in air or to protect against flash over due to rodents or extreme humidity.

A full range of insulating boots are available up to 17.5 kV. These can be ordered separately by quoting the part number or with the termination by adding a mod code to the end.

Example:
EPKT-17C3MOH3-B07 This kit comes complete with straight boots.
